Embedded Pole Vacuum Circuit Breaker for Reliable Power Distribution
The following is the table of contents for this article.
Thanks for sharing the article.
Introduction
An embedded pole vacuum circuit breaker is an advanced type of medium-voltage switching device designed for enhanced insulation, reliability, and compactness. By embedding the vacuum interrupter into solid insulation material, the embedded pole vacuum circuit breaker improves performance while reducing maintenance requirements.
As power systems demand higher safety and durability, the embedded pole vacuum circuit breaker is widely used in switchgear systems, industrial plants, and utility substations.
👉 Explore related products:
https://chinadegatech.com/switchgear-products/
What is an Embedded Pole Vacuum Circuit Breaker?
An embedded pole vacuum circuit breaker is a circuit breaker where the vacuum interrupter is encapsulated within solid insulation, typically epoxy resin.
This design provides:
- Strong insulation performance
- Protection from environmental factors
- Improved mechanical strength
The embedded pole vacuum circuit breaker is ideal for modern medium-voltage applications.

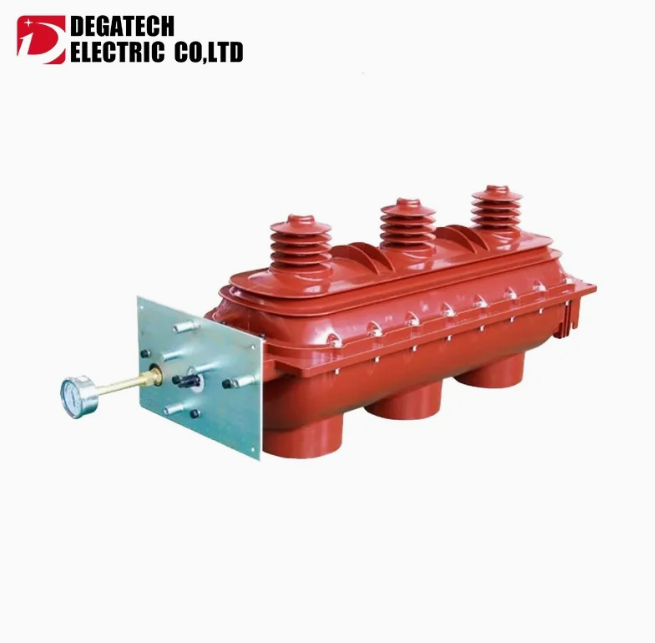

Embedded pole vacuum circuit breaker used in medium-voltage switchgear system
Working Principle
The embedded pole vacuum circuit breaker operates similarly to standard vacuum breakers but with enhanced insulation.
When a fault occurs:
- Contacts separate inside the vacuum interrupter
- An arc forms and is quickly extinguished
- Solid insulation prevents external influence
This ensures the embedded pole vacuum circuit breaker delivers safe and reliable performance.
Structure and Components
A typical embedded pole vacuum circuit breaker includes:
1. Embedded Pole Unit
Vacuum interrupter encapsulated in epoxy resin.
2. Contacts
Responsible for conducting and interrupting current.
3. Operating Mechanism
Controls switching operations.
4. Insulation System
Provides additional electrical protection.
Advantages of Embedded Pole Vacuum Circuit Breaker
The embedded pole vacuum circuit breaker offers several benefits:
✔ Enhanced Insulation
Solid encapsulation improves dielectric strength.
✔ High Reliability
Protected structure reduces environmental impact.
✔ Compact Design
Space-saving design for modern switchgear.
✔ Low Maintenance
Sealed components reduce maintenance needs.
✔ Long Service Life
Durable materials ensure extended operation.
Applications of Embedded Pole Vacuum Circuit Breaker
The embedded pole vacuum circuit breaker is widely used in:
- Medium-voltage switchgear
- Industrial power systems
- Utility substations
- Renewable energy installations
- Infrastructure projects
👉 View product solutions:
https://chinadegatech.com/switchgear-products/
Embedded Pole vs Traditional Vacuum Circuit Breaker
Traditional Vacuum Circuit Breaker
- Separate insulation components
- More exposure to environment
Embedded Pole Vacuum Circuit Breaker
- Fully encapsulated interrupter
- Higher reliability and protection
The embedded pole vacuum circuit breaker is increasingly preferred in modern designs.
Maintenance
The embedded pole vacuum circuit breaker requires minimal maintenance:
- Routine inspection
- Mechanical testing
- Performance monitoring
Its sealed structure simplifies maintenance processes.
Future Trends
The embedded pole vacuum circuit breaker is evolving with:
- Smart monitoring technologies
- Digital substations
- Integration with eco-friendly switchgear
- Increased use in renewable energy systems
External References (Outbound Links)
- https://en.wikipedia.org/wiki/Vacuum_circuit_breaker
- https://en.wikipedia.org/wiki/Electrical_switchgear
- https://www.iea.org/topics/electricity
Internal Links
Embedded pole vacuum circuit breaker used in medium-voltage switchgear system
FAQs
What is an embedded pole vacuum circuit breaker?
It is a vacuum circuit breaker with an interrupter embedded in solid insulation.
Why use embedded pole design?
It improves insulation, reliability, and reduces maintenance.
Where is it used?
In switchgear systems, substations, and industrial applications.
What are its advantages?
High reliability, compact design, and long service life.
Is it better than traditional VCB?
Yes, especially in terms of insulation and durability.
Does it require maintenance?
Minimal maintenance is required due to sealed design.
Conclusion
The embedded pole vacuum circuit breaker is a modern solution for reliable and efficient power distribution. Its advanced design enhances safety, reduces maintenance, and ensures long-term performance.
As power systems continue to evolve, the embedded pole vacuum circuit breaker will remain a key technology in medium-voltage applications.
