24kV Epoxy Resin Bushing: Reliable Insulation for Medium Voltage Equipment

Introduction

A 24kV epoxy resin bushing is a critical insulation component used in medium-voltage electrical equipment, including switchgear, vacuum circuit breakers (VCBs), ring main units (RMUs), and power distribution systems. Designed to provide excellent electrical insulation and mechanical support, epoxy resin bushings ensure safe operation while maintaining system reliability under demanding operating conditions.

As modern power networks continue to evolve toward compact, maintenance-free, and environmentally friendly solutions, epoxy resin insulation technology has become the preferred choice for medium-voltage equipment manufacturers. Compared with traditional porcelain bushings, epoxy resin bushings offer superior dielectric performance, greater mechanical strength, and enhanced resistance to environmental factors.

Today, the 24kV epoxy resin bushing is widely used in utilities, industrial facilities, renewable energy projects, and commercial electrical infrastructure worldwide.

What Is a 24kV Epoxy Resin Bushing?

A 24kV epoxy resin bushing is an insulating device designed to allow energized conductors to pass safely through grounded metal structures while maintaining electrical isolation.

Its main functions include:

• Electrical insulation
• Mechanical support
• Conductor positioning
• Arc resistance
• System protection

The bushing is manufactured using high-quality epoxy resin through advanced casting or molding processes to ensure long-term reliability.

Key Features of 24kV Epoxy Resin Bushings

High Dielectric Strength

Provides reliable insulation for medium-voltage systems operating at 24kV.

Excellent Mechanical Strength

Resists vibration, mechanical loads, and operational stress.

Compact Design

Supports modern switchgear and circuit breaker designs with limited installation space.

Moisture and Pollution Resistance

Maintains performance in challenging environmental conditions.

Long Service Life

Offers stable electrical and mechanical performance over many years.

Low Maintenance Requirements

Requires minimal inspection and maintenance throughout its operational life.

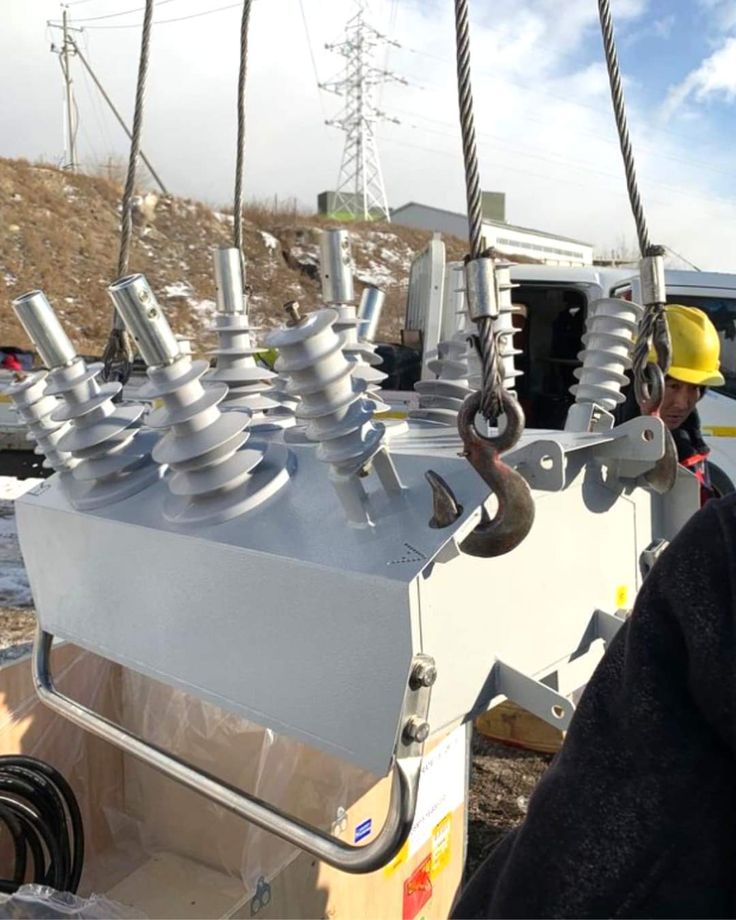

24kV epoxy resin bushing for medium voltage switchgear

Applications of 24kV Epoxy Resin Bushings

24kV Medium Voltage Switchgear

Provides insulation between conductors and grounded switchgear enclosures.

24kV Vacuum Circuit Breakers (VCBs)

Supports vacuum interrupters and conductor connections.

Ring Main Units (RMUs)

Used in compact medium-voltage distribution equipment.

Solid Insulated Switchgear (SIS)

Serves as a key insulation component in SF6-free switchgear systems.

Gas Insulated Switchgear (GIS)

Provides conductor insulation and mechanical support.

Distribution Substations

Installed in utility and industrial power distribution systems.

Advantages of 24kV Epoxy Resin Bushings

Enhanced Electrical Safety

High insulation performance minimizes the risk of flashover and electrical faults.

Improved Equipment Reliability

Stable insulation properties support long-term system operation.

Space-Saving Construction

Compact dimensions help optimize switchgear layouts.

Environmental Durability

Resistant to humidity, dust, and environmental contamination.

Cost-Effective Performance

Long service life reduces replacement and maintenance expenses.

Compatibility with Modern Equipment

Suitable for advanced switchgear and circuit breaker technologies.

Types of 24kV Epoxy Resin Bushings

Switchgear Bushings

Specifically designed for medium-voltage switchgear applications.

VCB Bushings

Used in vacuum circuit breakers to provide insulation and support.

Embedded Pole Bushings

Integrated with vacuum interrupter assemblies.

Busbar Bushings

Provide insulation and support for switchgear busbar systems.

Customized Epoxy Bushings

Manufactured according to customer drawings and technical requirements.

Manufacturing Process of 24kV Epoxy Resin Bushings

Material Preparation

High-grade epoxy resin and fillers are selected for optimal performance.

Vacuum Casting

Vacuum technology removes air bubbles and improves insulation quality.

Precision Molding

Ensures dimensional accuracy and consistent product quality.

Curing Process

Controlled curing enhances mechanical and dielectric properties.

Machining and Finishing

Final dimensions and surface quality are achieved through precision processing.

Quality Testing

Every bushing undergoes rigorous inspection before shipment.

Important Technical Specifications

When selecting a 24kV epoxy resin bushing, consider the following parameters:

Actual specifications may vary depending on equipment design and project requirements.

24kV Epoxy Resin Bushing vs Porcelain Bushing

Epoxy resin bushings have become the preferred option for modern medium-voltage equipment manufacturers.

How to Choose a 24kV Epoxy Resin Bushing

Verify Voltage Rating

Ensure the bushing is specifically designed for 24kV applications.

Assess Dielectric Performance

High insulation strength is critical for reliable operation.

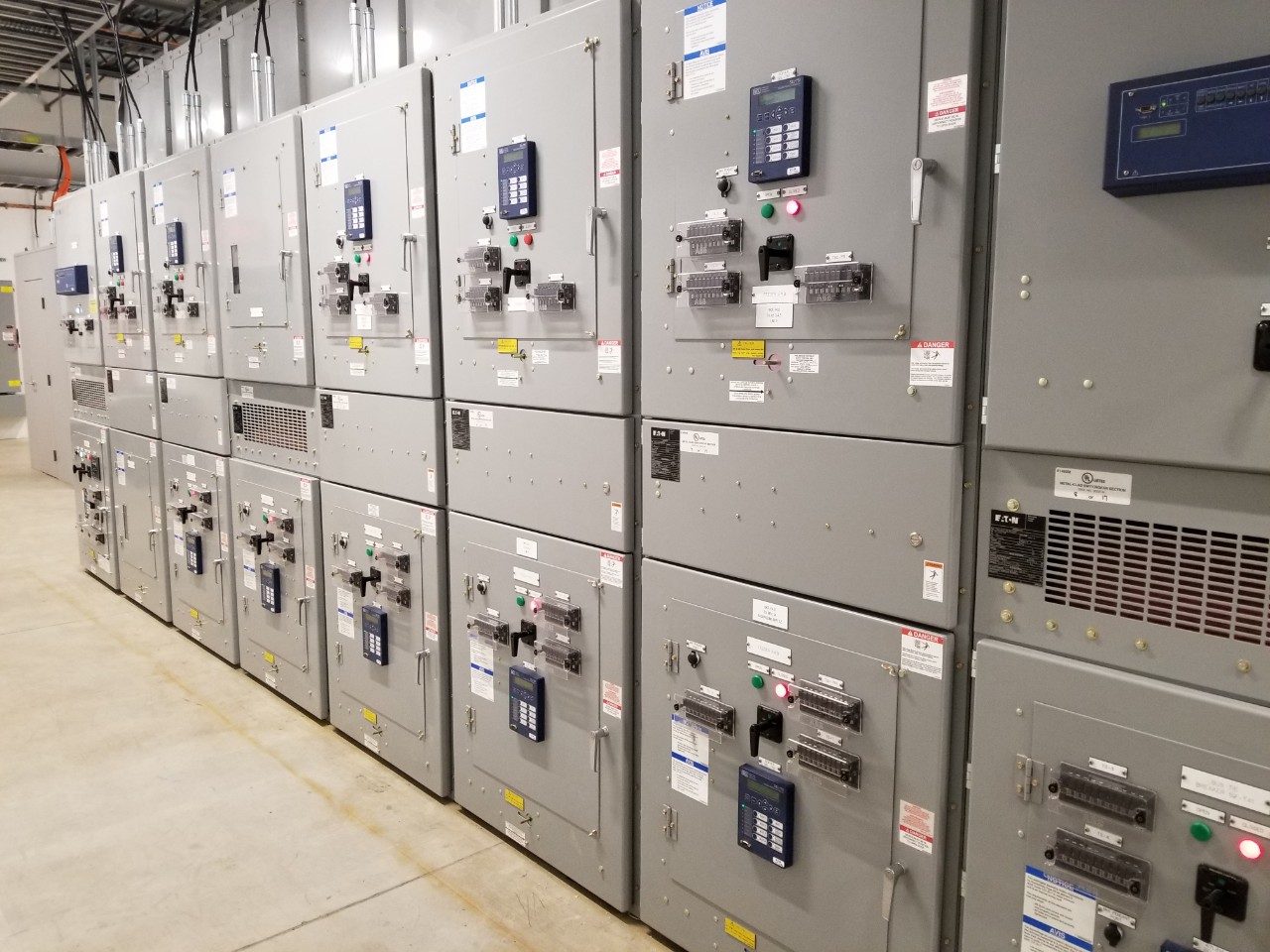

24kV epoxy resin bushing for medium voltage switchgear

Review Manufacturer Quality Standards

Look for compliance with:

• IEC standards
• ISO 9001
• ISO 14001

Check Mechanical Properties

Strong mechanical performance improves long-term reliability.

Consider Equipment Compatibility

The bushing should match switchgear or circuit breaker design requirements.

Future Trends in 24kV Epoxy Resin Bushings

Advanced Epoxy Formulations

New materials improve thermal and dielectric performance.

Compact Switchgear Designs

Growing demand for smaller equipment drives innovation.

SF6-Free Power Systems

Epoxy bushings support environmentally friendly switchgear technologies.

Automated Manufacturing

Improves consistency and production efficiency.

Enhanced Partial Discharge Resistance

Manufacturers continue improving insulation reliability and lifespan.

FAQs

What is a 24kV epoxy resin bushing?

A 24kV epoxy resin bushing is an insulation component used to isolate energized conductors from grounded structures in medium-voltage electrical equipment.

Where is a 24kV epoxy resin bushing used?

It is commonly used in switchgear, vacuum circuit breakers, ring main units, and distribution substations.

Why is epoxy resin used in electrical bushings?

Because it offers excellent dielectric strength, mechanical durability, and environmental resistance.

What are the advantages of epoxy resin bushings over porcelain bushings?

They are lighter, stronger, more compact, and require less maintenance.

Are 24kV epoxy resin bushings suitable for outdoor applications?

Yes. Certain designs are specifically manufactured for outdoor environments.

How long does a 24kV epoxy resin bushing last?

With proper installation and operating conditions, it can provide reliable service for many years.

Conclusion

A 24kV epoxy resin bushing is a vital component in medium-voltage electrical equipment, delivering reliable insulation, strong mechanical support, and long-term operational performance. Its excellent dielectric properties and compatibility with modern switchgear and circuit breaker designs make it an ideal solution for today’s power distribution systems.

As utilities and industries continue investing in compact, efficient, and environmentally responsible electrical infrastructure, 24kV epoxy resin bushings will remain an essential part of medium-voltage technology.
