12kV switchgear is medium-voltage electrical equipment designed for power distribution systems with a rated voltage of 12 kV. It can include vacuum circuit breakers, disconnectors, earthing switches, busbars, protection devices, and control equipment, depending on the configuration.

12kV switchgear is commonly considered for industrial plants, utility distribution networks, commercial facilities, renewable energy projects, substations, and transformer feeders.

For buyers, the most important point is that 12 kV is only one part of the specification. Rated current, short-circuit capability, insulation level, internal arc requirements, installation environment, protection scheme, and applicable standards must also match the project.

What Is 12kV Switchgear?

12kV switchgear is a medium-voltage switchgear solution with a 12 kV rated voltage.

Its primary functions can include:

• Switching electrical circuits
• Protecting equipment from faults
• Isolating sections of a power system
• Connecting transformers and feeders
• Controlling medium-voltage distribution
• Providing safe access for maintenance

A typical 12kV switchgear lineup may contain several functional compartments.

Depending on the design, these can include:

• Circuit breaker compartment
• Busbar compartment
• Cable compartment
• Low-voltage control compartment
• Instrument transformer compartment

The actual configuration depends on the application and manufacturer.

Why Is 12kV a Common Switchgear Rating?

12kV equipment is widely used in medium-voltage distribution because it can fit a range of utility, industrial, and commercial power systems.

It can be suitable for applications where the system voltage and insulation requirements align with a 12kV-rated switchgear design.

A 12kV switchgear lineup may be used for:

• Transformer incoming feeders
• Distribution feeders
• Industrial substations
• Motor feeders
• Renewable energy collection systems
• Commercial power distribution

However, the equipment’s rated voltage should not be selected simply because the nominal system voltage appears close to 12kV.

The system’s actual maximum voltage, insulation coordination, fault level, and applicable standards should be evaluated during engineering.

Key 12kV Switchgear Ratings to Check

When comparing products, the rated voltage is only the starting point.

Rated Voltage

The switchgear must be suitable for the maximum system voltage and insulation requirements specified for the project.

Rated Current

Common switchgear current ratings vary according to the equipment design and application.

The required rating should account for:

• Normal load
• Transformer capacity
• Feeder loading
• Future expansion
• Ambient conditions

Short-Circuit Current

Fault current is one of the most important specifications.

The switchgear and circuit breaker must have suitable short-circuit withstand and interruption capabilities for the system.

Do not select a 12kV switchgear panel based on voltage and current alone.

Short-Time Withstand Current

This indicates the current the equipment can withstand for a specified period under the applicable test conditions.

It is particularly important for evaluating busbars and other current-carrying components during fault conditions.

Peak Withstand Current

The peak withstand capability relates to the mechanical forces generated by high short-circuit currents.

Insulation Level

Buyers should also review the applicable power-frequency and impulse withstand requirements.

The required insulation level depends on the equipment rating and system conditions.

Vacuum Circuit Breakers in 12kV Switchgear

Vacuum circuit breakers are widely used in modern medium-voltage switchgear.

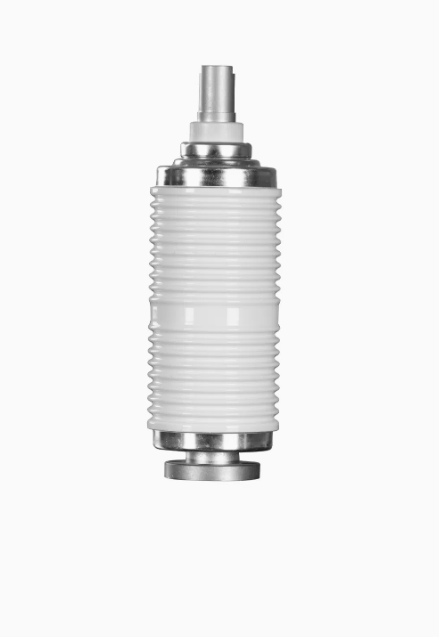

A vacuum interrupter provides the current interruption function within a sealed chamber.

Potential advantages include:

• Compact interruption technology
• Low routine maintenance requirements
• No SF6 gas inside the vacuum interrupter
• Suitable switching performance for many MV applications

A typical 12kV VCB panel can include:

• Vacuum interrupter
• Operating mechanism
• Protection relay
• Current transformers
• Control circuits
• Interlocking system

The circuit breaker should be selected according to the required electrical and mechanical duty.

Importantly, a 12kV vacuum circuit breaker is not the same as a complete 12kV switchgear assembly. The complete assembly has its own enclosure, insulation, busbar, cable, protection, and testing requirements.

Types of 12kV Switchgear

Metal-Enclosed Switchgear

Metal-enclosed switchgear provides a robust enclosure for medium-voltage components.

It can be configured with separate compartments for circuit breakers, busbars, and cables.

Vacuum Circuit Breaker Switchgear

This configuration uses VCBs as the main switching and protection device.

It is commonly considered for industrial and utility distribution systems.

Ring Main Unit

A 12kV Ring Main Unit can be used in distribution networks where compact equipment and ring-type feeder arrangements are required.

RMUs are often considered for:

• Urban distribution
• Commercial buildings
• Industrial sites
• Renewable energy projects

Solid Insulated Switchgear

Solid insulated switchgear uses solid dielectric materials for insulation.

This design can support compact equipment and is also relevant to projects seeking alternatives to traditional SF6-based solutions.

Gas-Insulated Switchgear

Gas-insulated designs can provide compact equipment configurations.

The specific insulating medium should be verified during procurement, particularly for projects with environmental requirements concerning SF6.

Where Is 12kV Switchgear Used?

Industrial Facilities

12kV switchgear can be used for:

• Plant incoming power
• Transformer feeders
• Motor feeders
• Distribution feeders
• Bus couplers

Industrial environments may also require consideration of internal arc protection, pollution, temperature, and maintenance access.

Utility Distribution

Utilities can use medium-voltage switchgear for distribution substations and feeder systems.

The exact voltage class depends on the utility network and local standards.

Solar Power Plants

Solar farms can use 12kV-class equipment in medium-voltage collector systems and substations.

A project may require multiple feeder panels to collect power from several transformer stations.

Wind Farms

Wind farms can use medium-voltage switchgear for collection and distribution between turbines and substations.

For remote sites, environmental protection and maintenance requirements become particularly important.

Commercial Buildings

Large commercial facilities can use 12kV switchgear for incoming utility supplies and transformer distribution.

Data Centers

Data centers may use medium-voltage switchgear to distribute incoming utility power to transformers and other electrical infrastructure.

The design must account for redundancy, protection coordination, and operational requirements.

12kV Switchgear and IEC Standards

The applicable IEC standards depend on the type of equipment being supplied.

The IEC 62271 series is an important standards framework for high-voltage switchgear and controlgear, including equipment commonly classified as medium voltage.

Relevant requirements can address:

• Switchgear construction
• Circuit breakers
• Disconnectors
• Earthing switches
• Metal-enclosed assemblies
• Testing
• Internal arc classification

For a 12kV project, buyers should ask the supplier to identify the exact IEC standard and edition applicable to the equipment, rather than simply stating “IEC compliant.”

For example, requirements for a complete metal-enclosed switchgear assembly are different from those for an individual vacuum circuit breaker.

Indoor vs Outdoor 12kV Switchgear

Indoor 12kV Switchgear

Indoor equipment is installed inside an electrical room or dedicated enclosure.

Potential advantages include:

• Controlled environment
• Reduced direct exposure to weather
• Easier environmental management
• Protected operating conditions

However, the electrical room must provide suitable ventilation, clearances, access, and environmental conditions.

Outdoor 12kV Switchgear

Outdoor switchgear is designed for installation in an external environment.

The design may need to account for:

• Rain
• Dust
• Humidity
• Solar radiation
• Temperature changes
• Corrosive environments

The enclosure protection and environmental ratings should therefore be checked carefully.

How to Select 12kV Switchgear

1. Confirm the System Voltage

Start with the actual system voltage and maximum equipment voltage requirements.

Do not select equipment based solely on the nominal voltage shown on a single-line diagram.

2. Determine the Load Current

Calculate the expected operating current and consider future expansion.

The selected continuous current rating should provide appropriate operating margin without unnecessarily increasing equipment size.

3. Calculate the Fault Level

The available short-circuit current determines important switchgear and circuit breaker requirements.

This should be established before selecting the equipment.

4. Select the Switching Technology

For many modern MV systems, vacuum circuit breakers are a common option.

Other switching devices may be appropriate depending on the application.

5. Define Internal Arc Requirements

If personnel access is possible near energized switchgear, determine whether an Internal Arc Classification is required.

The desired accessibility and test conditions should be specified.

6. Consider the Installation Environment

Specify:

• Indoor or outdoor
• Ambient temperature
• Altitude
• Humidity
• Pollution level
• Space constraints
• Cable entry requirements

7. Review Testing and Documentation

Ask the manufacturer for:

• Type-test documentation
• Routine-test procedures
• Technical drawings
• Protection diagrams
• Installation instructions
• Maintenance documentation

8. Consider Future Expansion

If the distribution system may expand, consider whether the switchgear lineup can accommodate:

• Additional feeders
• Spare panels
• Bus-section arrangements
• Future transformer capacity

This can be especially important for industrial plants and renewable energy projects.

12kV Switchgear for Renewable Energy

The growth of solar, wind, and battery storage projects creates new applications for medium-voltage switchgear.

In a solar project, for example, power from multiple transformer stations may be collected through an MV network before reaching the main substation.

A 12kV-class switchgear system can potentially be used when its electrical ratings and project requirements match the collector network.

For renewable energy applications, buyers should consider:

• Collector system voltage
• Transformer rating
• Fault current
• Protection coordination
• Outdoor environmental conditions
• Remote monitoring
• Maintenance access

For battery storage projects, additional considerations may include the system’s fault contribution and coordination with the battery inverter and protection system.

Maintenance Considerations

12kV switchgear maintenance depends on the equipment design.

Modern vacuum-based switchgear can offer relatively low routine maintenance requirements, but maintenance is not automatically eliminated.

Operators may need to inspect:

• Circuit breaker mechanisms
• Electrical connections
• Protection relays
• Insulation
• Interlocks
• Auxiliary circuits
• Cable compartments

Maintenance intervals should follow the manufacturer’s instructions and the applicable project requirements.

Frequently Asked Questions

What is 12kV switchgear?

12kV switchgear is medium-voltage electrical equipment with a 12kV rated voltage, used for switching, protection, isolation, and distribution in electrical power systems.

Is 12kV switchgear the same as medium-voltage switchgear?

12kV switchgear is a type of medium-voltage switchgear. The broader medium-voltage category includes equipment with different voltage ratings.

What type of circuit breaker is commonly used in 12kV switchgear?

Vacuum circuit breakers are widely used in modern medium-voltage switchgear, including 12kV-class applications.

What is the typical application of 12kV switchgear?

Applications include industrial plants, utility distribution, transformer substations, commercial buildings, solar farms, wind farms, and other medium-voltage power distribution systems.

Is 12kV switchgear suitable for solar farms?

It can be suitable where the solar collector system’s voltage, current, fault level, insulation requirements, and other project parameters match the switchgear specifications.

Is 12kV switchgear available as SF6-free equipment?

Yes. Depending on the manufacturer and design, 12kV-class equipment can use technologies such as vacuum interruption, air insulation, or solid insulation without relying on SF6.

What short-circuit rating should 12kV switchgear have?

There is no universal rating. The required short-circuit capability must be determined from the project’s available fault current and protection study.

What standards apply to 12kV switchgear?

The applicable standards depend on the equipment type and project. Relevant parts of the IEC 62271 series are commonly used for medium-voltage switchgear and controlgear.

How do I choose a 12kV switchgear supplier?

Compare the supplier’s technical specifications, applicable standards, test documentation, customization capability, production quality, spare-parts support, service capability, and experience with comparable projects.

Conclusion

12kV switchgear is a versatile medium-voltage solution for industrial, utility, commercial, and renewable energy power distribution.

However, selecting the right equipment requires more than matching a “12kV” label. Buyers should evaluate rated current, short-circuit capability, insulation level, circuit breaker technology, internal arc requirements, environmental conditions, applicable standards, and future expansion needs.

For distributors and EPC contractors, a well-defined technical specification can make supplier comparisons much easier and reduce the risk of selecting equipment that does not match the project’s electrical requirements.

When the application calls for modern medium-voltage distribution, 12kV vacuum circuit breaker switchgear, solid insulated switchgear, and compact RMU solutions can all be considered depending on the network configuration and project specifications.
