Why 24kV Vacuum Circuit Breaker Technology Is Essential for Modern Power Systems
The following is the table of contents for this article.
Thanks for sharing the article.
Introduction
A 24kV vacuum circuit breaker is a critical component in medium-voltage electrical distribution systems. Designed for reliable fault interruption, operational safety, and efficient power protection, the 24kV vacuum circuit breaker is widely used in substations, industrial facilities, renewable energy projects, and utility power networks.
As modern electrical infrastructure continues to expand, industries require protection systems that offer high reliability, low maintenance, and environmentally friendly operation. The 24kV vacuum circuit breaker has become a preferred solution because of its excellent arc-extinguishing capability and long service life.
👉 Explore related switchgear products:
https://chinadegatech.com/switchgear-products/
What is a 24kV Vacuum Circuit Breaker?
A 24kV vacuum circuit breaker is a medium-voltage switching device designed to interrupt fault currents in electrical systems operating at 24kV.
Its primary functions include:
- Overload protection
- Short-circuit interruption
- Circuit switching
- Electrical isolation
The breaker uses vacuum interrupter technology to extinguish electrical arcs quickly and safely.
How a 24kV Vacuum Circuit Breaker Works
A 24kV vacuum circuit breaker operates by separating electrical contacts inside a sealed vacuum interrupter chamber.
During operation:
- Protection relays monitor electrical conditions
- Fault signals activate the operating mechanism
- Contacts separate inside the vacuum chamber
- The vacuum extinguishes the electrical arc rapidly
This process helps protect electrical equipment and maintain system reliability.

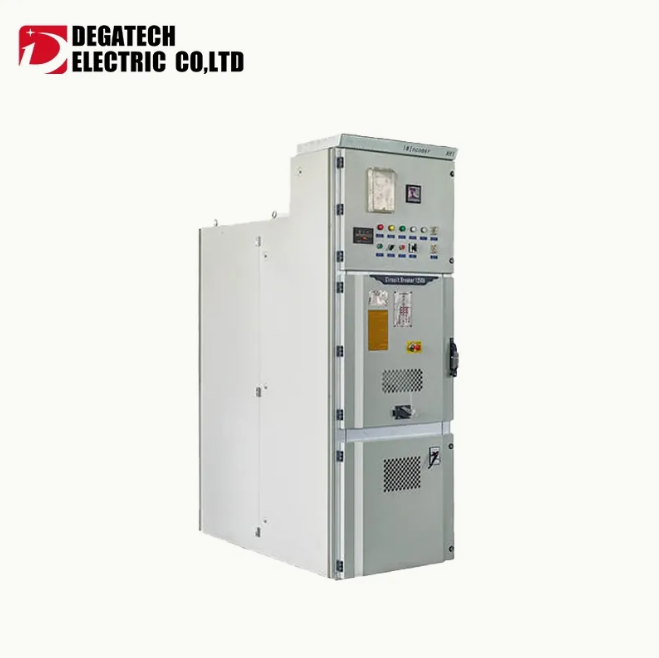

24kV vacuum circuit breaker installed in medium-voltage switchgear
Key Components of a 24kV Vacuum Circuit Breaker
A typical 24kV vacuum circuit breaker includes several important components.
1. Vacuum Interrupter
Interrupts fault currents using vacuum arc extinction technology.
2. Operating Mechanism
Controls opening and closing operations.
3. Insulation System
Provides dielectric protection between energized components.
4. Protection Relay
Detects abnormal operating conditions and controls breaker operation.
5. Monitoring and Control Unit
Supports operational management and system monitoring.
These components work together to ensure stable and efficient medium-voltage protection.
Advantages of 24kV Vacuum Circuit Breaker Technology
Modern 24kV vacuum circuit breaker systems offer several important benefits.
✔ Reliable Arc Interruption
Vacuum technology extinguishes electrical arcs efficiently.
✔ High Operational Safety
Protects electrical systems from faults and overloads.
✔ Compact Structure
Suitable for medium-voltage switchgear installations.
✔ Low Maintenance
Vacuum interrupters require minimal servicing.
✔ Long Mechanical Life
Durable components improve operational reliability.
✔ Environmentally Friendly
No SF6 gas emissions are involved in vacuum interruption.
Applications of 24kV Vacuum Circuit Breaker
A 24kV vacuum circuit breaker is widely used in:
- Utility substations
- Industrial manufacturing facilities
- Renewable energy systems
- Commercial electrical infrastructure
- Mining and transportation systems
- Smart grid power networks
👉 View medium-voltage solutions:
https://chinadegatech.com/switchgear-products/
24kV Vacuum Circuit Breaker vs SF6 Circuit Breaker
24kV Vacuum Circuit Breaker
- Uses vacuum interruption technology
- Low environmental impact
- Reduced maintenance requirements
- Long operational life
SF6 Circuit Breaker
- Uses SF6 gas insulation
- Strong dielectric performance
- Requires gas handling and monitoring
- Higher environmental concerns
Many industries prefer 24kV vacuum circuit breaker technology because of its sustainability and reliability advantages.
Selection Considerations
When selecting a 24kV vacuum circuit breaker, important factors include:
- Rated current
- Short-circuit interruption capacity
- Mechanical endurance
- Installation environment
- Switchgear compatibility
- Compliance with IEC standards
Proper selection improves electrical system safety and operational efficiency.
Maintenance and Inspection
Although 24kV vacuum circuit breaker systems require relatively low maintenance, routine inspection remains important.
Maintenance practices include:
- Mechanical operation testing
- Contact wear inspection
- Insulation resistance testing
- Protection relay verification
- Temperature monitoring
Routine maintenance helps maximize service life and operational reliability.
Environmental Benefits of 24kV Vacuum Circuit Breaker
One major advantage of the 24kV vacuum circuit breaker is its reduced environmental impact.
Environmental benefits include:
- Elimination of SF6 greenhouse gas emissions
- Reduced maintenance-related environmental risks
- Improved sustainability compliance
- Energy-efficient electrical protection
These advantages support modern clean energy initiatives.
24kV vacuum circuit breaker installed in medium-voltage switchgear
Future Trends in 24kV Vacuum Circuit Breaker Technology
The future of 24kV vacuum circuit breaker technology includes:
- Smart monitoring systems
- Digital substations
- Compact modular switchgear
- Remote operation and automation
- Advanced vacuum interrupter materials
These innovations continue improving medium-voltage electrical systems.
External References (Outbound Links)
- https://en.wikipedia.org/wiki/Vacuum_circuit_breaker
- https://en.wikipedia.org/wiki/Circuit_breaker
- https://www.iea.org/topics/electricity
Internal Links
FAQs
What is a 24kV vacuum circuit breaker?
It is a medium-voltage breaker designed to interrupt fault currents in 24kV electrical systems.
What are the advantages of a 24kV vacuum circuit breaker?
Reliable arc interruption, compact design, low maintenance, and long service life.
Where is a 24kV vacuum circuit breaker used?
In substations, industrial facilities, renewable energy systems, and utility power networks.
Does a 24kV vacuum circuit breaker use SF6 gas?
No, it uses vacuum interruption technology instead of SF6 gas.
Why is vacuum interruption technology important?
It provides efficient arc extinction with low environmental impact.
Does a 24kV vacuum circuit breaker require maintenance?
Yes, but maintenance requirements are generally lower than traditional gas-insulated breakers.
Conclusion
A 24kV vacuum circuit breaker is an advanced and reliable solution for medium-voltage electrical protection systems. Its efficient vacuum interruption technology, long operational life, and environmentally friendly performance make it ideal for industrial, utility, and renewable energy applications.
As modern electrical infrastructure continues to evolve, 24kV vacuum circuit breaker technology will remain an essential part of safe and efficient power distribution networks.
